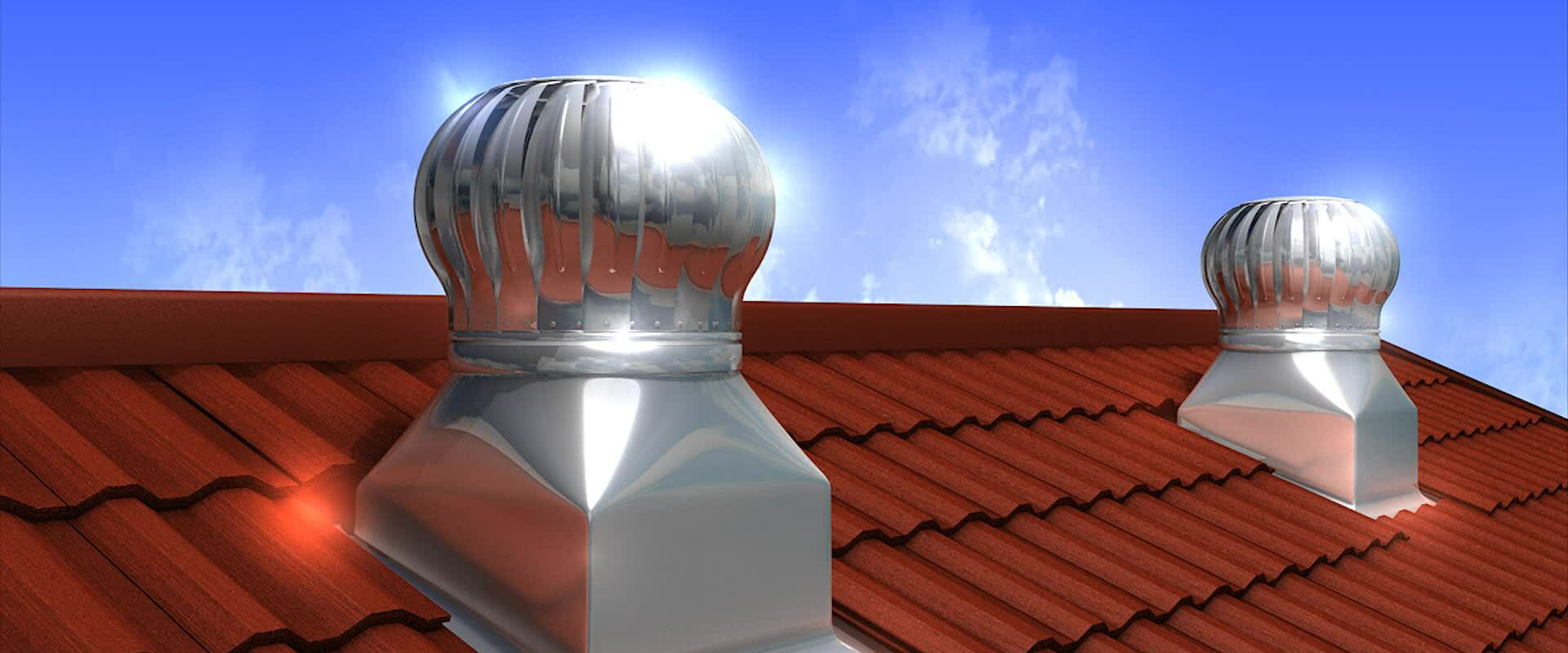

Maxlite Turbo Air Ventilator

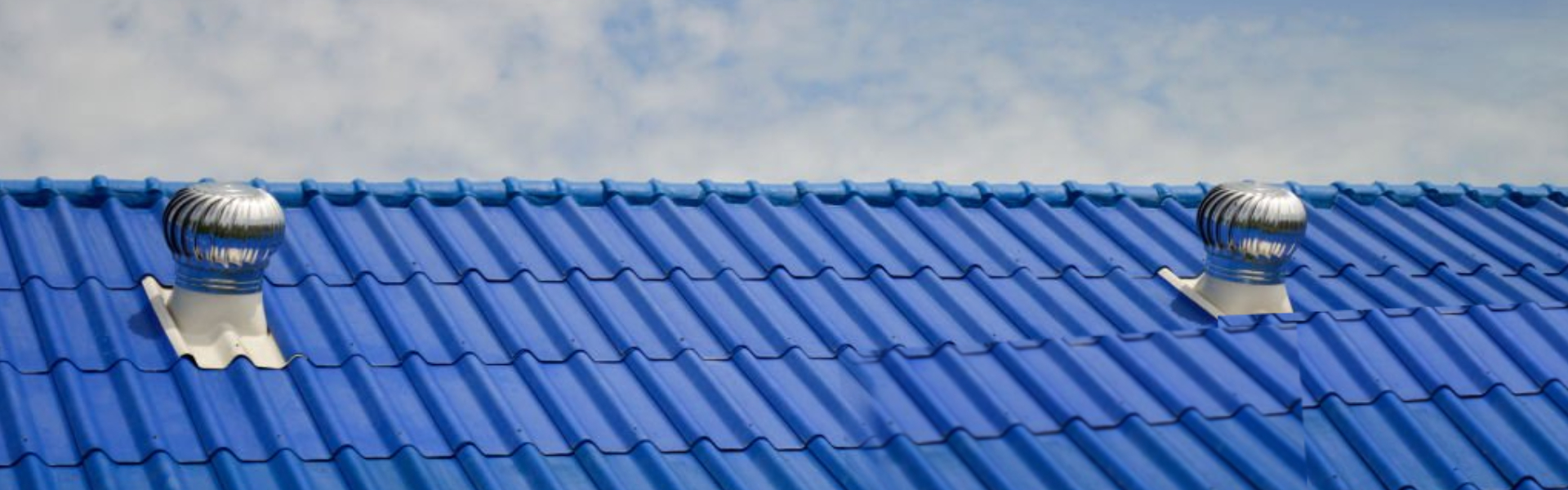

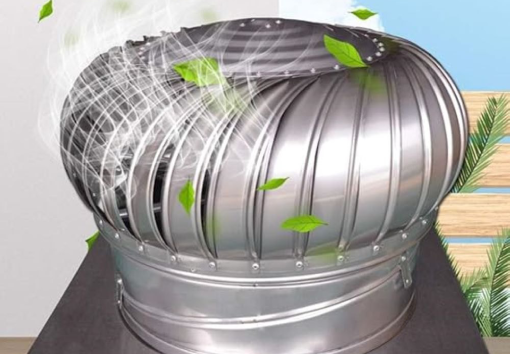

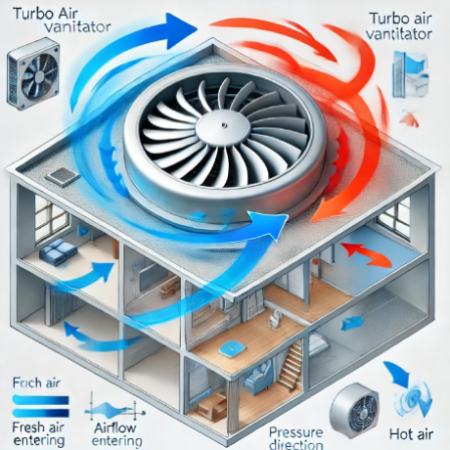

The Turbo Air Ventilator is a high-efficiency, wind-powered ventilation system designed to remove heat, humidity, smoke, and stale air from industrial, commercial, and residential spaces.

Engineered for durability and performance, it provides a cost-effective and eco-friendly solution for maintaining fresh indoor air.

Enhance Airflow

Reduce Heat & Moisture

No Electricity Needed

Key Features:

24-Inch Neck Size – Large capacity for maximum air extraction and efficient airflow.
No Electricity Required – Runs on natural wind energy, reducing energy costs.
High-Quality Material – Made from corrosion-resistant aluminum or stainless steel for long-lasting durability.
Smooth & Silent Operation – Precision-engineered bearings ensure noise-free performance.
Weather & Dust Resistant – Designed to withstand harsh environmental conditions, ensuring uninterrupted ventilation.
Eco-Friendly & Energy-Saving – Reduces dependency on mechanical ventilation systems, lowering carbon footprint.

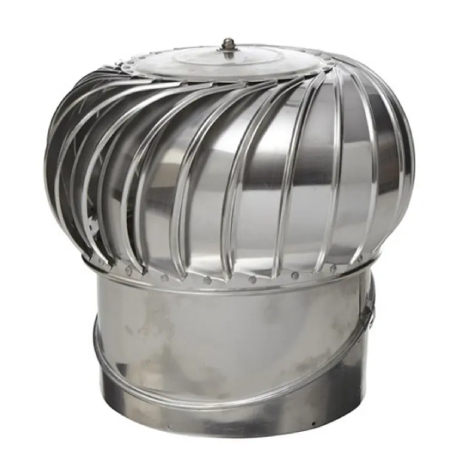

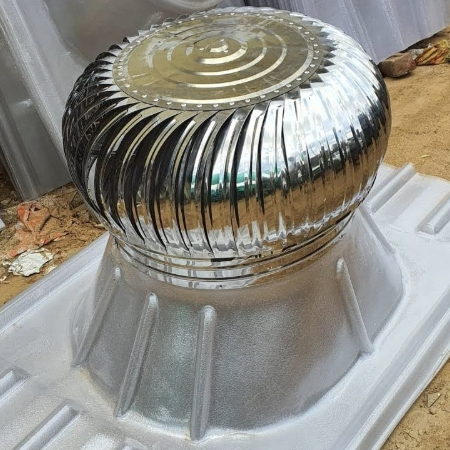

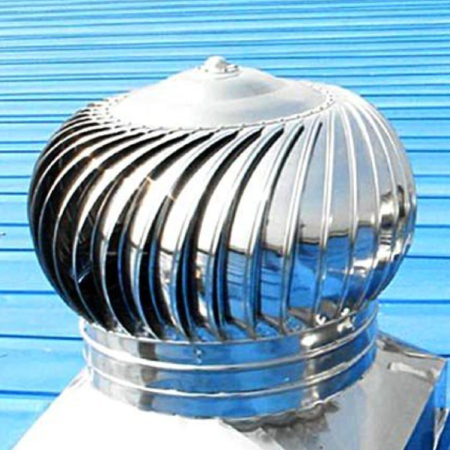

Maxlite Turbo Air Ventilator

Brand	Maxlite
Turbine Weight	5.25kg
Rivets	Aluminium Alloy with washer
Material	Stainless Steel
Neck/Throat	24 inch(610 mm)
Height	16 inch(410 mm)
Vanes( Blades)	38 vanes.0.3mm
Bearing Types	SKF- 6000ZZ Permanently Lubricated & Sealed
Top Plate Moc	SS 0.5 mm
Centre Shaft	12 mm SS
Inner Arms	Stainless Steel
Outer Arms	Stainless Steel
SS Grade	430
Number of Bearings	2 nos
Exhaust Capacity	1972 CFM
Base Ring	Stainless Steel
